Centrolock guided transverse osteotomy system is an osteosynthesis screw-plate indicated for hallux valgus
The hybrid design combines a cannulated intramedullary stem with plate fixation on the metatarsal head. Powerful three plane corrections once achieved only by Lapidus, can now be performed through a distal minimally invasive guided approach.
![](https://staging.novastep.life/wp-content/uploads/2020/04/Website-CentroLock-image2-copy-2048x463-1-1024x232.jpg)
![](https://int.novastep.life/wp-content/uploads/sites/2/2020/04/Centrolock.png)
Minimally Invasive Technique
![](https://staging.novastep.life/wp-content/uploads/2021/09/Osteotomy-with-Stroke.png)
1
Transverse osteotomy
Guided multiplane correction.
![](https://staging.novastep.life/wp-content/uploads/2020/04/Implant-positioning.png)
2
Implant positioning
Intermetatarsal angle correction & sagittal plane correction.
![](https://staging.novastep.life/wp-content/uploads/2020/04/Distal-fixation.png)
3
Distal fixation
Inferior locking screws, implanted to achieve sagittal plane correction.
![](https://staging.novastep.life/wp-content/uploads/2020/04/Rotational-alignment.png)
4
Rotational alignment
Frontal plane alignment and compression.
![](https://staging.novastep.life/wp-content/uploads/2020/04/Proximal-fixation.png)
5
Proximal fixation
Proximal fixation, securing final correction.
![](https://staging.novastep.life/wp-content/uploads/2020/04/implant-advantages-1.jpg)
Guided Instrumentation for Minimally Invasive Surgery
![Centrolock Tray](https://int.novastep.life/wp-content/uploads/sites/2/2022/12/centrolock-tray-layout.png)
![XMS01033](https://int.novastep.life/wp-content/uploads/sites/2/2022/12/centrolock-part-1.png)
![33-T10-R-20-100](https://int.novastep.life/wp-content/uploads/sites/2/2022/12/centrolock-part-2.png)
![XMS01029](https://int.novastep.life/wp-content/uploads/sites/2/2022/12/centrolock-part-6.png)
![XMS01040](https://int.novastep.life/wp-content/uploads/sites/2/2022/12/osteotomy.png)
![XPP01005](https://int.novastep.life/wp-content/uploads/sites/2/2022/12/centrolock-part-3.png)
![33-T10-R-20-150](https://int.novastep.life/wp-content/uploads/sites/2/2022/12/centrolock-part-4.png)
![XRE01014](https://int.novastep.life/wp-content/uploads/sites/2/2022/12/centrolock-part-8.png)
![XMS01009](https://int.novastep.life/wp-content/uploads/sites/2/2022/12/centrolock-part-7.png)
![XMS01030](https://int.novastep.life/wp-content/uploads/sites/2/2022/12/centrolock-part-15.png)
![XTI06016](https://int.novastep.life/wp-content/uploads/sites/2/2022/12/centrolock-part-9.png)
![XTI06014](https://int.novastep.life/wp-content/uploads/sites/2/2022/12/centrolock-part-10.png)
![XTI06012](https://int.novastep.life/wp-content/uploads/sites/2/2022/12/centrolock-part-11.png)
![XTI06022](https://int.novastep.life/wp-content/uploads/sites/2/2022/12/centrolock-part-12.png)
![XTI06024](https://int.novastep.life/wp-content/uploads/sites/2/2022/12/centrolock-part-13.png)
![XTI06026](https://int.novastep.life/wp-content/uploads/sites/2/2022/12/centrolock-part-14.png)
![XHA01001](https://int.novastep.life/wp-content/uploads/sites/2/2022/12/centrolock-part-16.jpg)
![XDG01019](https://int.novastep.life/wp-content/uploads/sites/2/2022/12/centrolock-part-17.png)
![XGA01003](https://int.novastep.life/wp-content/uploads/sites/2/2022/12/centrolock-part-18.png)
![XDB01020](https://int.novastep.life/wp-content/uploads/sites/2/2022/12/centrolock-part-19.png)
![XGA01011](https://int.novastep.life/wp-content/uploads/sites/2/2022/12/centrolock-part-20.png)
![XSD01003](https://int.novastep.life/wp-content/uploads/sites/2/2022/12/centrolock-part-21.png)
![XDG01018](https://int.novastep.life/wp-content/uploads/sites/2/2022/12/centrolock-part-22.png)
![XDB01019D](https://int.novastep.life/wp-content/uploads/sites/2/2022/12/centrolock-part-23.png)
![XRE01022](https://int.novastep.life/wp-content/uploads/sites/2/2022/12/centrolock-part-24.png)
![XMS01026](https://int.novastep.life/wp-content/uploads/sites/2/2022/12/centrolock-part-25.png)
![](https://int.novastep.life/wp-content/uploads/sites/2/2022/12/centrolock-part-26.png)
![XT106010](https://int.novastep.life/wp-content/uploads/sites/2/2022/12/centrolock-part-27.png)
![XT106020](https://int.novastep.life/wp-content/uploads/sites/2/2022/12/centrolock-part-27.png)

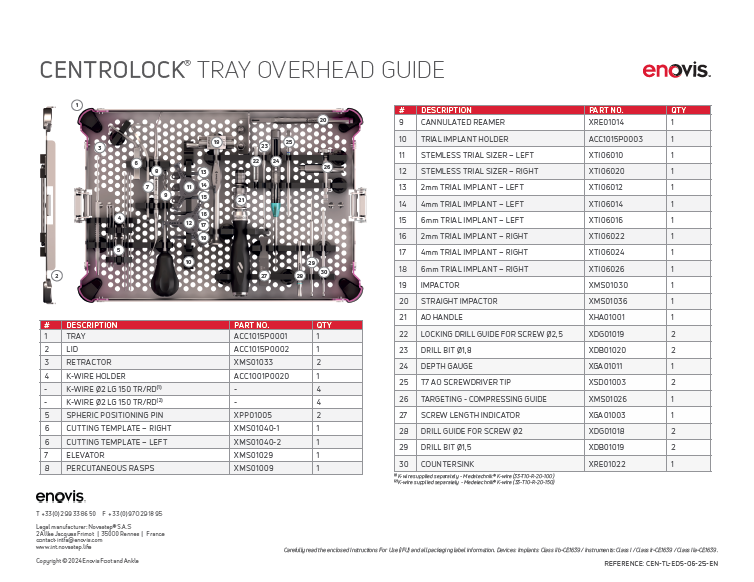

Part# | Description | QTY |
---|---|---|
ACC1015P0001 | Tray | 1 |
ACC1015P0002 | Lid | 1 |
ACC1001P0020 | K-wire holder | 1 |
ACC1015P0003 | Trial implant holder | 1 |
XMS01033 | Retractor | 2 |
33-T10-R-20-100 | K-wire Ø2 lg 100 TR-RD extra sharp | 4* |
33-T10-R-20-150 | K-wire Ø2 lg 150 TR-RD extra sharp | 4* |
XPP01005 | Spheric positioning pin | 2 |
XMS01040-1 | Cutting template right | 1 |
XMS01040-2 | Cutting template left | 1 |
XMS01029 | Elevator | 1 |
XMS01009 | Percutaneous rasps | 1 |
XRE01014 | Cannulated reamer | 1 |
XTI06010 | Stemless trial sizer left | 1 |
XTI06020 | Stemless trial sizer right | 1 |
XTI06012 | 2 mm trial implant left | 1 |
XTI06014 | 4 mm trial implant left | 1 |
XTI06016 | 6 mm trial implant left | 1 |
XTI06022 | 2 mm trial implant right | 1 |
XTI06024 | 4 mm trial implant right | 1 |
XTI06026 | 6 mm trial implant right | 1 |
XMS01030 | Impactor | 1 |
XMS01036 | Straight impactor | 1 |
XHA01001 | AO handle | 1 |
XDG01019 | Locking drill guide for screw Ø 2.5 | 2 |
XDB01020 | Drill bit Ø 1.8 | 2 |
XGA01011 | Depth gauge | 1 |
XSD01003 | T7 AO screwdriver tip | 2 |
XMS01026 | Targeting / compressing guide | 1 |
XGA01003 | Screw indicator | 1 |
XDG01018 | Drill guide for screw Ø 2 | 2 |
XDB01019D | Drill bit Ø 1.5mm | 2 |
XRE01022 | Countersink | 1 |
![Centrolock Tray](https://int.novastep.life/wp-content/themes/novastep/dist/images/centrolock/centrolock-tray-layout_b6b50494.png)
![XMS01033](https://int.novastep.life/wp-content/themes/novastep/dist/images/centrolock/centrolock-part-1_10296f7c.png)
![CKW01012](https://int.novastep.life/wp-content/themes/novastep/dist/images/centrolock/centrolock-part-2_e2ff334c.png)
![XMS01029](https://int.novastep.life/wp-content/themes/novastep/dist/images/centrolock/centrolock-part-6_b00c7161.png)
![XMS01040](https://int.novastep.life/wp-content/themes/novastep/dist/images/centrolock/osteotomy_afdcb2ca.png)
![XPP01005D](https://int.novastep.life/wp-content/themes/novastep/dist/images/centrolock/centrolock-part-3_eb7cb7d2.png)
![CKW01013](https://int.novastep.life/wp-content/themes/novastep/dist/images/centrolock/centrolock-part-4_0ea03f7b.png)
![XRE01014](https://int.novastep.life/wp-content/themes/novastep/dist/images/centrolock/centrolock-part-8_c16cad82.png)
![XMS01009](https://int.novastep.life/wp-content/themes/novastep/dist/images/centrolock/centrolock-part-7_e57bdd20.png)
![XMS01030](https://int.novastep.life/wp-content/themes/novastep/dist/images/centrolock/centrolock-part-15_c0622034.png)
![XTI06016](https://int.novastep.life/wp-content/themes/novastep/dist/images/centrolock/centrolock-part-9_11886d74.png)
![XTI06014](https://int.novastep.life/wp-content/themes/novastep/dist/images/centrolock/centrolock-part-10_23316616.png)
![XTI06012](https://int.novastep.life/wp-content/themes/novastep/dist/images/centrolock/centrolock-part-11_663b373b.png)
![XTI06022](https://int.novastep.life/wp-content/themes/novastep/dist/images/centrolock/centrolock-part-12_d29654d1.png)
![XTI06024](https://int.novastep.life/wp-content/themes/novastep/dist/images/centrolock/centrolock-part-13_f31c0c1a.png)
![XTI06026](https://int.novastep.life/wp-content/themes/novastep/dist/images/centrolock/centrolock-part-14_9c5bce52.png)
![XHA01002](https://int.novastep.life/wp-content/themes/novastep/dist/images/centrolock/centrolock-part-16_44de418e.png)
![XDG01019](https://int.novastep.life/wp-content/themes/novastep/dist/images/centrolock/centrolock-part-17_cd9ed8fa.png)
![XGA01003](https://int.novastep.life/wp-content/themes/novastep/dist/images/centrolock/centrolock-part-18_4a4e4721.png)
![XDB01020D](https://int.novastep.life/wp-content/themes/novastep/dist/images/centrolock/centrolock-part-19_d5d42b19.png)
![XGA01011](https://int.novastep.life/wp-content/themes/novastep/dist/images/centrolock/centrolock-part-20_747e0ffe.png)
![XSD01003](https://int.novastep.life/wp-content/themes/novastep/dist/images/centrolock/centrolock-part-21_bca2db01.png)
![XDG01018](https://int.novastep.life/wp-content/themes/novastep/dist/images/centrolock/centrolock-part-22_a15dd548.png)
![XDB01019D](https://int.novastep.life/wp-content/themes/novastep/dist/images/centrolock/centrolock-part-23_1f579843.png)
![XRE01022](https://int.novastep.life/wp-content/themes/novastep/dist/images/centrolock/centrolock-part-24_fb54dc27.png)
![XMS01026](https://int.novastep.life/wp-content/themes/novastep/dist/images/centrolock/centrolock-part-25_40b1285a.png)
![XHA01001](https://int.novastep.life/wp-content/themes/novastep/dist/images/centrolock/centrolock-part-26_875a747c.png)
![XT106010](https://int.novastep.life/wp-content/themes/novastep/dist/images/centrolock/centrolock-part-27_924fd087.png)
![XT106020](https://int.novastep.life/wp-content/themes/novastep/dist/images/centrolock/centrolock-part-27_924fd087.png)
Part# | Description | QTY |
---|---|---|
XMS01033 | Retractor | 2 |
ACC1001P0020 | Centrolock K-wires holder | 1 |
CKW01012 | K-wire Ø2 lg. 100 TR-RD extra sharp* | 4 |
CKW01013 | K-wire Ø2 lg. 150 TR-RD extra sharp* | 4 |
XPP01005D | Centrolock temporary fixation pin* | 2 |
XMS01040-1 XMS01040-2 |
Centrolock cutting template Right Centrolock cutting template Left |
1 1 |
XMS01029 | Centrolock elevator | 1 |
XMS01009 | Percutaneous rasps | Optional |
XRE01014 | Centrolock cannulated reamer | 1 |
XT106010 | Centrolock® Stemless trial sizer Left | 1 |
XT106010 | Centrolock® Stemless trial sizer Right | 1 |
XTI06012 | Centrolock trial implant – Left step 2mm | 1 |
XTI06014 | Centrolock trial implant – Left step 4mm | 1 |
XTI06016 | Centrolock trial implant – Left step 6mm | 1 |
XTI06022 | Centrolock trial implant – Right step 2mm | 1 |
XTI06024 | Centrolock trial implant – Right step 4mm | 1 |
XTI06026 | Centrolock trial implant – Right step 6mm | 1 |
XMS01030 | Centrolock impactor | 1 |
XHA01001 | AO handle | 1 |
XHA01002 | AO Ratcheting Handle | 1 |
XDG01019 | Centrolock locking drill guide – screw Ø2.5mm | 2 |
XDB01020D | Centrolock drill bit Ø1.8mm* | 2 |
XGA01011 | Centrolock depth gauge | 1 |
XSD01003 | Centrolock screwdriver tip T7 | 2 |
XMS01026 | Centrolock targeting / compressing guide | 1 |
XGA01003 | Screw measurer | 1 |
XDG01018 | Centrolock drill guide – screw Ø2mm | 2 |
XDB01019D | Centrolock drill bit Ø1.5mm* | 2 |
XRE01022 | Centrolock Countersink | 1 |
XMS01036 | Centrolock straight impactor | Optional |
Prior to use of the Novastep® system, carefully read the surgical technique, the instructions for use (IFU) and all packaging label information related to the implants and instruments.
Medical devices. Implants: Class IIb-CE1639; Instruments: Class I-CE / Class IIa-CE1639.
