Basal Osteotomy / Open Wedge
The Basal Osteotomy plates come in left and right configurations and are only 1.0mm thick to accommodate the limitations of the soft tissue envelope of the medial column.
Three wedge sizes allow a range of opening angles, whereas the 0mm (no wedge) plate facilitates the fixation of closing osteotomies. All screw holes allow usage of Ø3.0mm or Ø3.5mm, locking and non-locking screws.
Basal Osteotomy / Open Wedge
The Basal Osteotomy plates come in left and right configurations and are only 1.0mm thick to accommodate the limitations of the soft tissue envelope of the medial column.
Three wedge sizes allow a range of opening angles, whereas the 0mm (no wedge) plate facilitates the fixation of closing osteotomies. All screw holes allow usage of Ø3.0mm or Ø3.5mm, locking and non-locking screws.
Standard compression hole:
- Accomodates with 3.0 non-locking screws
- Delivers 1.5 mm of additional compression
- Corresponds to areas with high bone density
Threaded holes:
For locking or non-locking 3.0 or 3.5 mm screws
Visual alignment guide for arthrodesis line:
Precise positioning of the plate in relation to the arthrodesis line
Visual alignment guide for compressive plantar screw:
Exact positioning of the MTP plate in relation to the interfragmentary screw

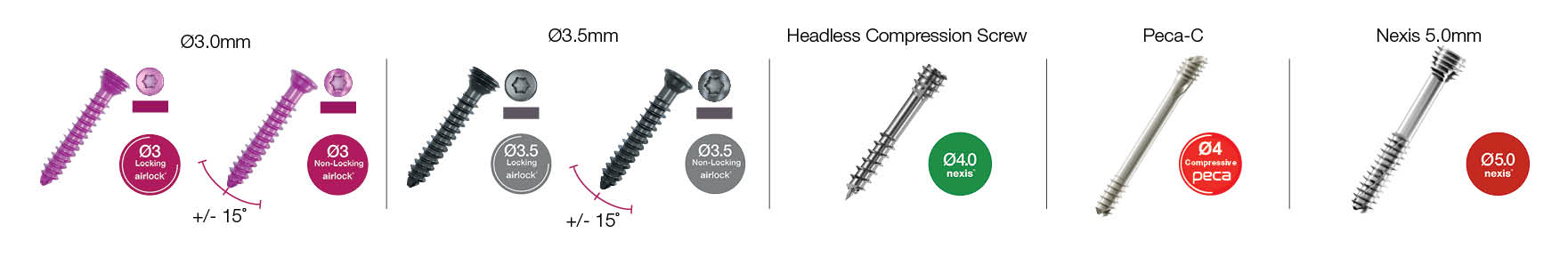

The Airlock® Ø3.0mm and Ø3.5mm locking and non-locking screws may be used in all Airlock plate fixation holes. However the standard compression hole only accomodate Ø3.0mm non-locking screws, and the Presslock® compression hole only accomodate Ø3.5mm locking screws.
Additional plantar compression can be achieved with a combined Nexis Ø4.0mm headless compression screw, beveled PECA Compressive Ø4.0mm screw, or Nexis Ø5.0mm headless compression screw.
All instrumentation is conveniently organized and color coded (see below).
Monoaxial & Polyaxial Capability
- Monoaxial locking screws
- Polyaxial non-locking screws
- Tapered head
- Self-tapping design
- Self-retaining driver / screw interface
Airlock with Presslock Upgrade
Airlock 2.0
Airlock 2.0 Reduction Instruments
AirlockGO® Product Delivery Option
AirlockGoTM combines Novastep’s Airlock® plating system and cleanSTART® sterile packaged, single-use instrument kits with a selection of Nexis® Ø4.0mm headless compression screws; providing the user with a self-contained, all-inclusive unit that addresses a range of foot and ankle pathologies.
Each AirlockGOTM box features a unique, procedurespecific configuration of implants and instruments that includes precontoured low-profile plates, monoaxial locking, polyaxial non-locking and headless compression screws.
All instrument kits and implants are individually packaged sterile with self-adhesive, UDI compliant data matrix labels.
Airlock® Operative Technique
Download PDF
Airlock® Sales Brochure
Download PDF
Airlock® Tray Layout
Download PDF
Prior to use of the Novastep® system, carefully read the surgical technique, the instructions for use (IFU) and all packaging label information related to the implants and instruments.
Medical devices. Implants: Class IIb-CE1639; Instruments: Class I-CE / Class IIa-CE1639.
